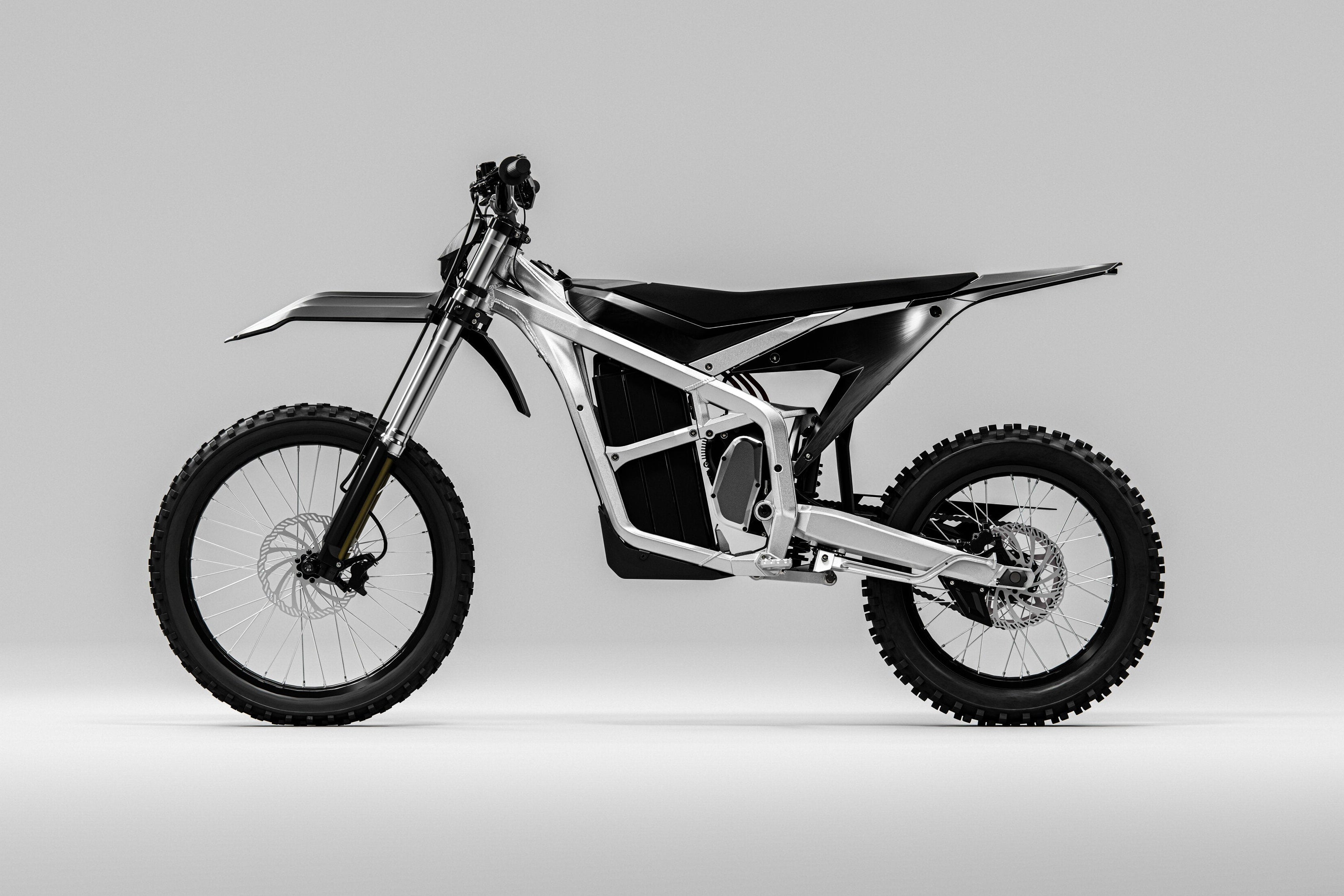

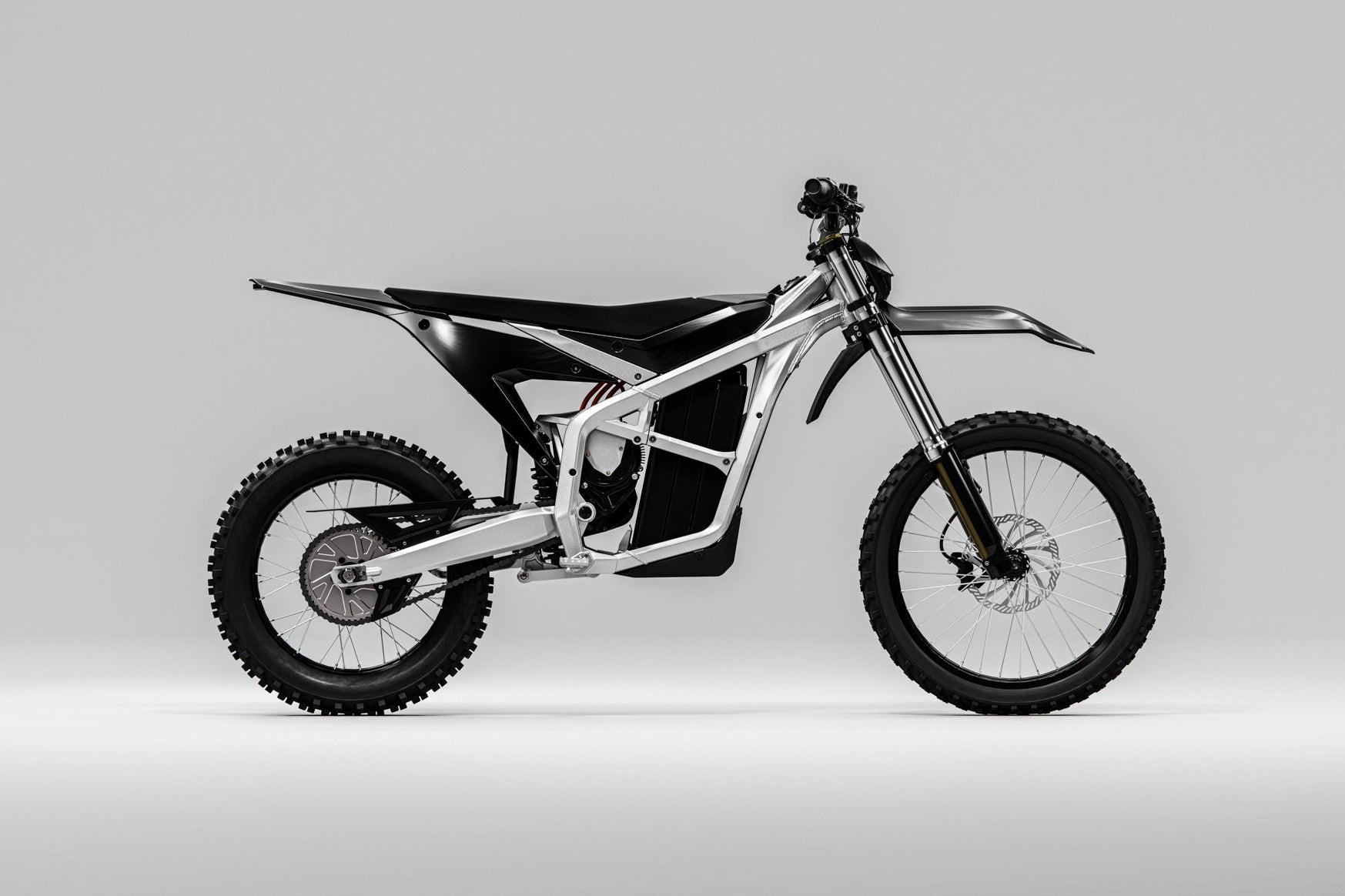

A New Generation of E-Moto
Engineered from the ground up with first principles in mind, the Alcedo delivers an intuitive ride feel from the first twist of the throttle. Best in class serviceability, reliability, and ride feel results in a bike that is as easy to own as it is to ride.
Key Features

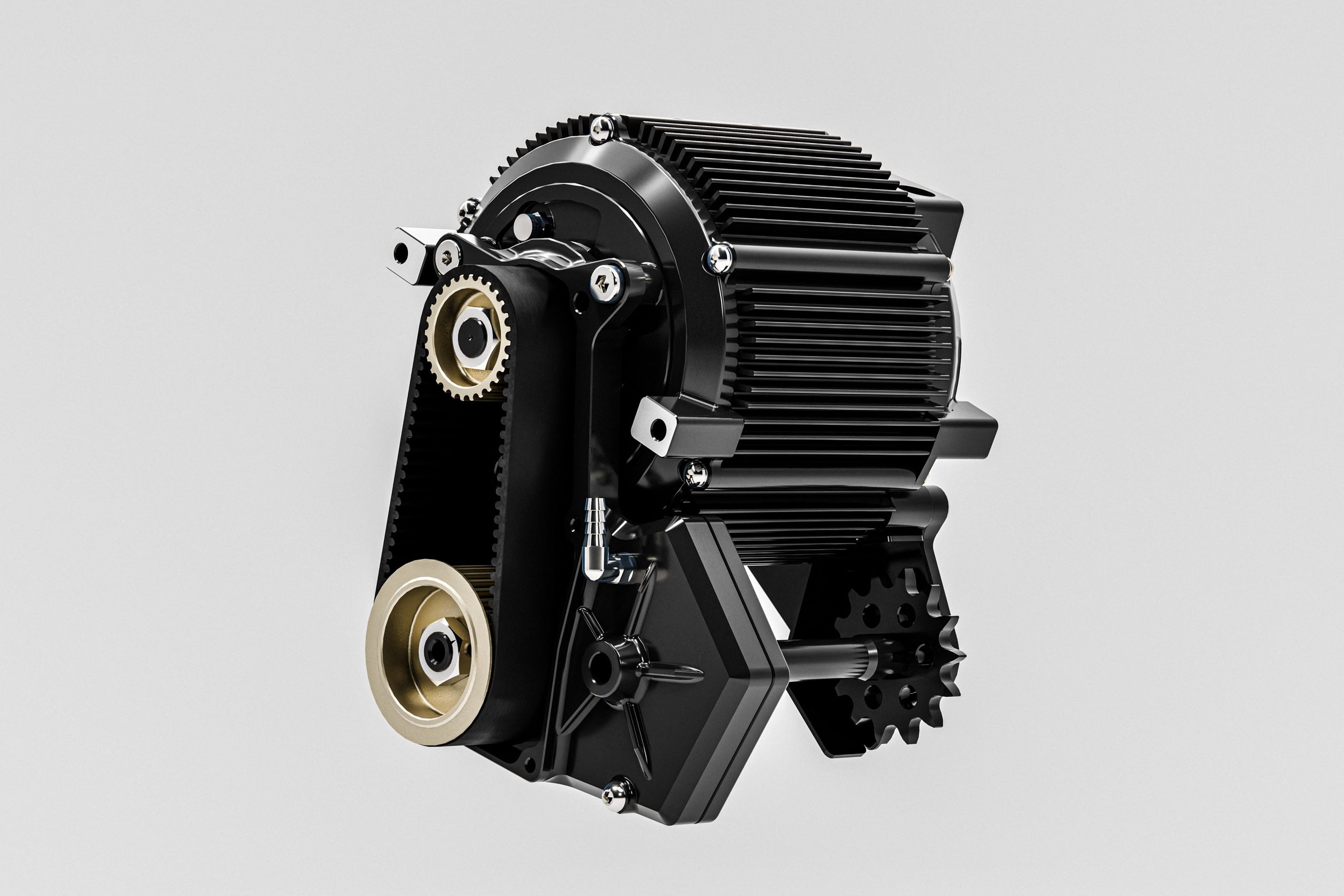

Two Stage Reduction
The Alcedo features two stage reduction that optimizes gearing, and delivers smooth power in system that can withstand 84% more load than the leading competition. Protected from the elements with an easily removable cover and externally serviceable with basic tools.
19/16" Wheel
The 19/16" wheel size leans on decades of motocross development. More traction, better cornering, increased flat protection, and a wide selection of tire options to compliment your riding conditions. Complete with rim lock to ensure reliable flat protection.

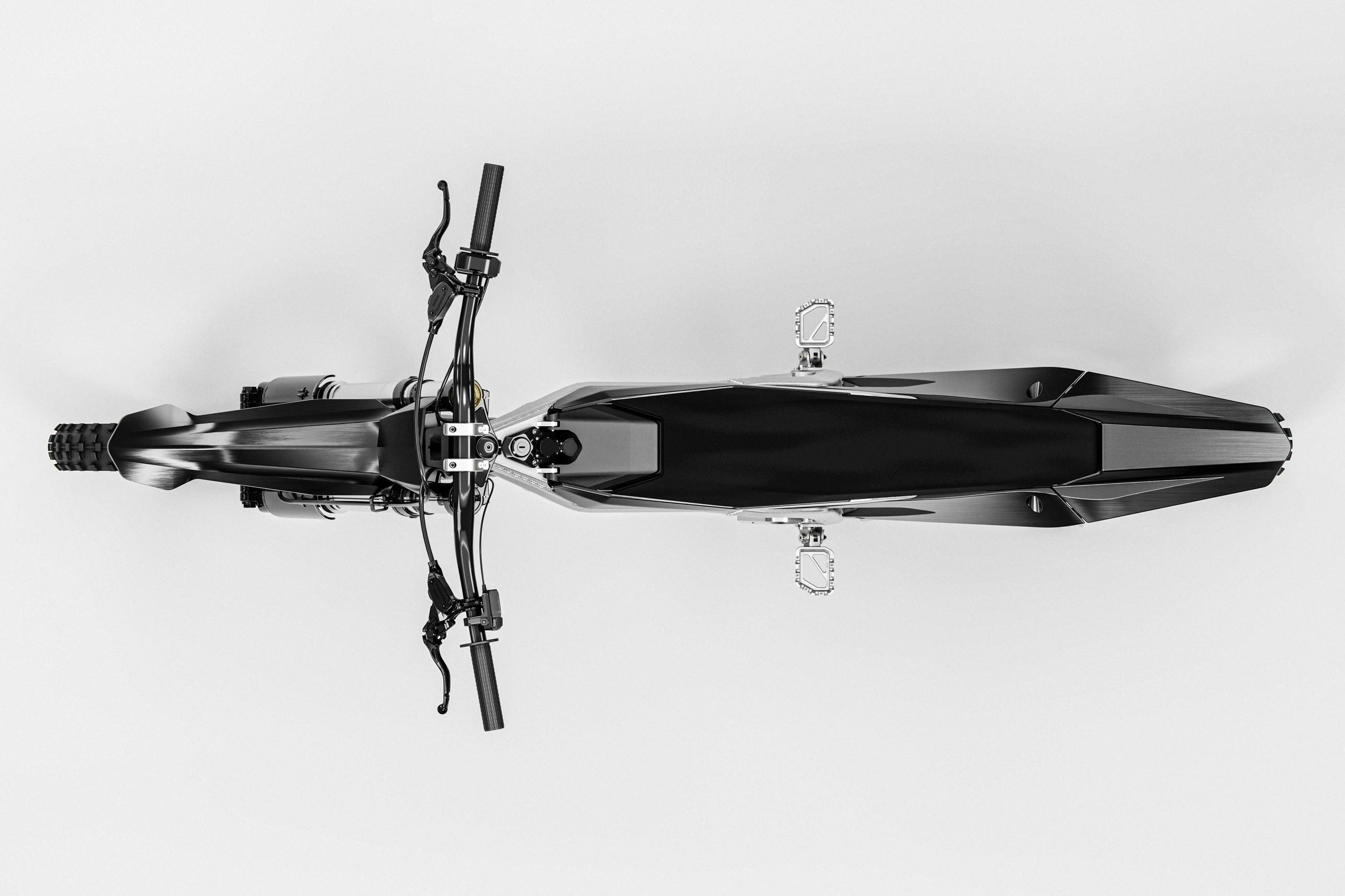

Intuitive Ergonomics
The Alcedo features a full length seat, low stand over height, and a sleek profile, allowing the rider to move freely around the bike. Foot peg, bar, and seat position have been carefully tuned to create a balanced rider triangle that inspires confidence.

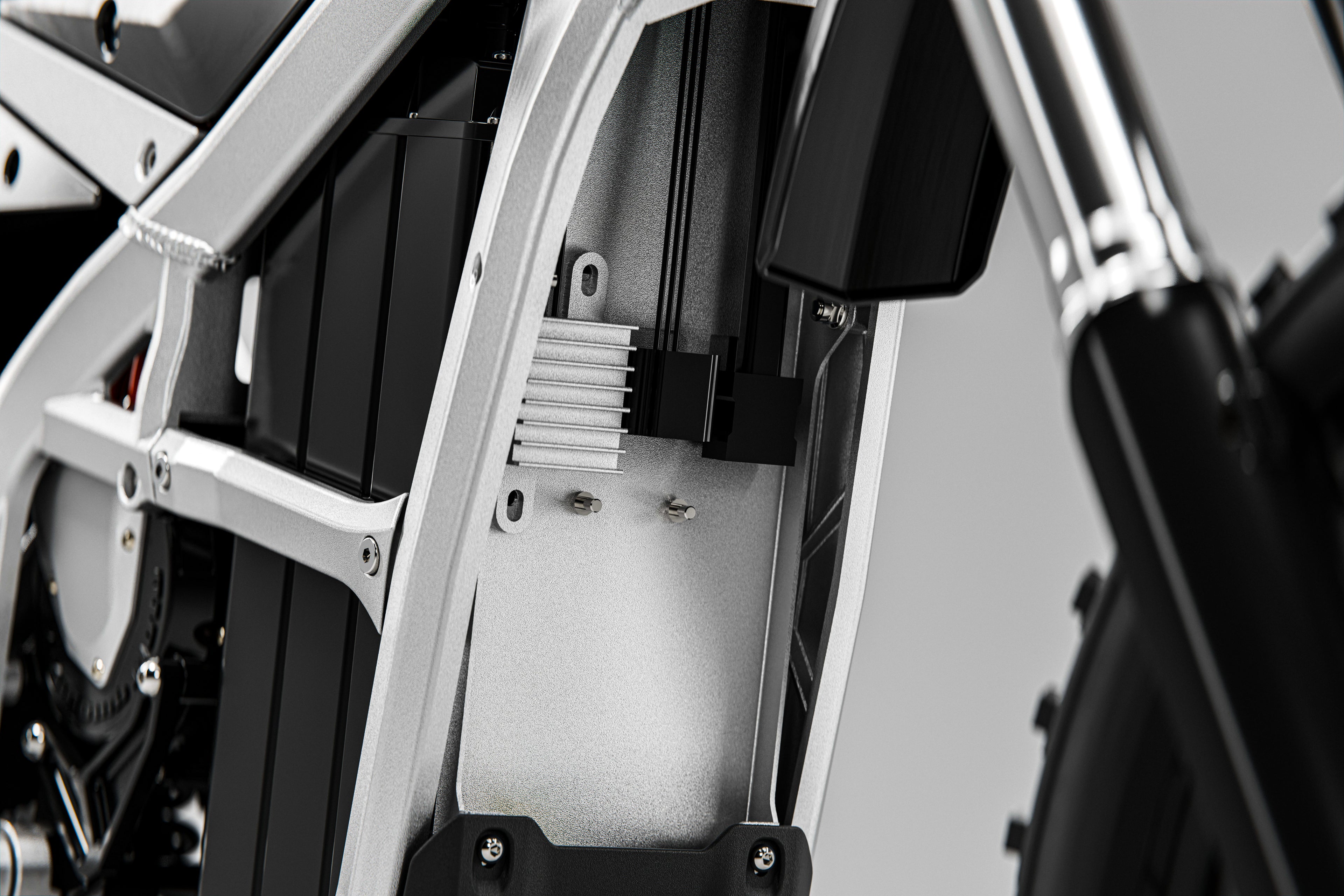

Smart Cable Management
Cables are routed through a dedicated compartment at the front of the bike to cleanly store and organize the bikes wiring harness ensuring easy access during upgrades or service.
Low Center of Gravity
Weight Matters. At 156 pounds, the Alcedo features class leading power to weight ratio, improving acceleration, response and handling. Our original frame layout places the motor, battery, and shock lower in the frame optimizing the center of gravity for more intuitive handling in every riding scenario.

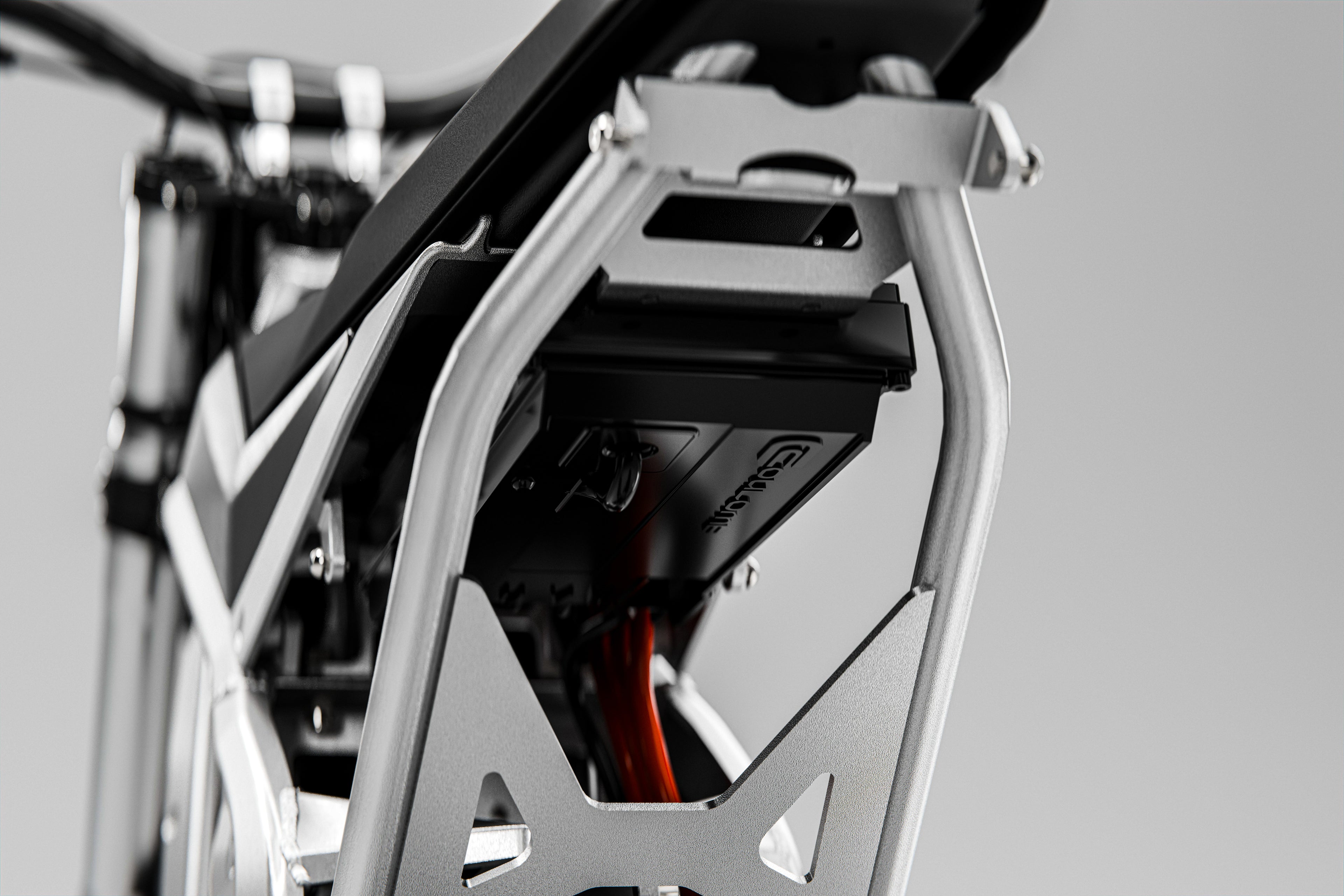

Rear Mount Controller
Placing the controller within the subframe of the bike allows for consistent airflow and reliable cooling, while being completely protected from the elements.

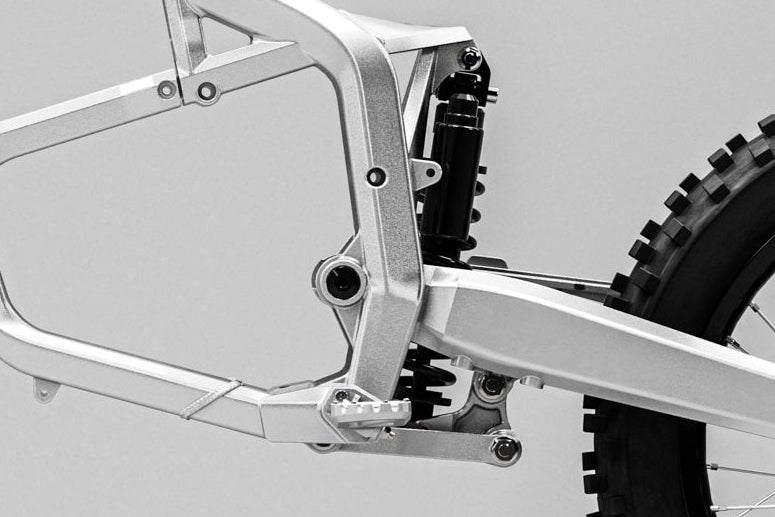

Moto Link
Tuned by Vessel Bike Project, the Alcedo delivers 200mm of controlled suspension travel that feels plush yet, is progressive enough to provide support in bottom out scenarios. Forces are well balanced to ensure smooth operation in high load situations and improve shock reliability.

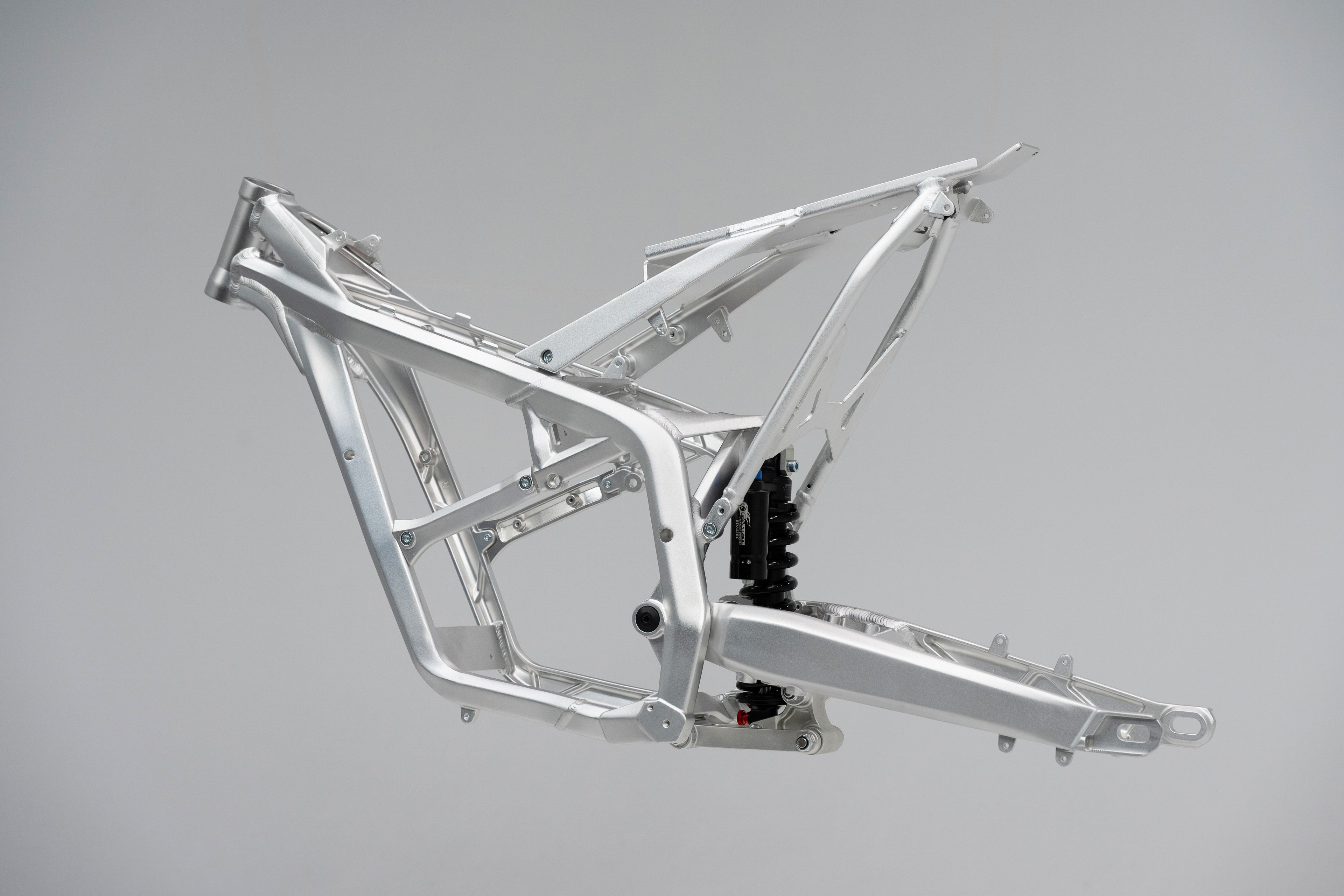

Peel Back the Layers
Frame, components, and touch points seamlessly integrated into one intuitive design.
Fast From Every Angle
Lines that convey speed even at a standstill.
PREPARING 360 VIEW...
SPECS
| Motor | Power: 16 kW (21.5 hp) | Torque: 61 Nm (45 ft-lbs) |
| Battery | 72V/40Ah |
| Range | 50 miles at 20mph |
| Top Speed | 61.5mph |
| Charge Time | 2.5 hours |
| Weight | 156 pounds |
| Frame | 6061 forged aluminum |
| Chain | 428 chain |
| Rear Sprocket | 48T 428 |
| Front Sprocket | 15T 428 |
| Front Wheel | 19" (70/100-19) |
| Rear Wheel | 16" (90/100-16) with rim lock |
| Suspension Front | Fast Ace 200mm with compression and rebound adjustment |
| Suspension Rear | Fast Ace 200mm with compression and rebound adjustment 265mm x 85mm |
| Brakes | Dot 4 hydraulic four piston |
| Rotors | 203mm six bolt |
| Wheel Base | 1340mm |
| Ground Clearance | 288mm |
| Seat Height | 820mm |
